JZ2-H系列船用起重用三相異步電動機

JZ2-H系列船用起重用三相異步電動機（單速、雙速及三速）

JZ2-H Series Three phase Marine Asynchronous Motor For Hoisting (single speed,double speed and three speed)

產品概述 （Product Overview ）

JZ2-H 系列船用起重用電動機適用于船舶上驅動各種起重機械及冶輔助設備，具有較高的過載能力和機械強度。適用于短時間或斷續周期性工作制，頻繁起動，制動及有顯著振動及有沖擊的設備。如錨機、絞盤機及絞盤等，也可作操作不頻繁的起貨機的動力。該系列電機具有性能好、體積小、噪音低、工作可靠、維修方便等特點。

JZ2-H Series three phase marine asynchronous motor for hoisting is suitable for driving various hoisting and smelting auxiliary equipments on board ship,the motors has good ability of overload and mechanical strength.it dose apply to short time or intermittent period duty,it is also used for frequent starting, braking and working with equipment which has abvious vibration and shock. such as anchor windlass,winch,capstan and so on,it can also provide power for cargo winch that is no need to operate frequently.the motor has feature of good performance, small size,low noise,reliable working and easy manitenance etc.

工作環境條件(Operating Conditions)

海拔≤1000m

Altitude should be lower than 1000m above sea level

環境溫度： -25~+45℃

Ambient temperature  -25~+45℃

空氣相對濕度 ≤95%

Relative humidity should be less than 95%.

傾斜:  ±22.5°

Inclination ：±22.5°

搖擺:  ±22.5°

Swing：±22.5°

有鹽霧、油霧、霉菌及海水的影響

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響

Influenced by shock and vibration come from ships and offshore installation.

防護等級：IP56; 絕緣等級：F

Protection :IP56 ; Insulation :F

電壓/頻率：380V/50Hz、440V/60Hz

Voltage/Frequency: 380V/50Hz、440V/60Hz

型號說明(Type Designation)

技術數據(Technical Data)

型號
Frame Size 		功率
Output 		額定電流
Rated Current (A) 		額定轉速
Rated Speed (r/min) 		工作制
Duty 		直流制動器
DC Brake 		重量
weight (kg)
380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 制動力矩 Brake Torque (N·m) 吸上電壓/吸上電流 Pull-in VOLT/Current(V/A) 維持電壓/維持電流 Holding VOLT/Current (V/A)
JZ2-11-4-H 1.5 4.3 3.7 1400 1680 S3-25% 24.8 128/1.19 128/1.19 66
JZ2-12-4-H 2.2 6 5.2 86
JZ2-13-4-H 3.5 8.9 7.7 77
JZ2-21-4-H 5 12 10.4 54.8 128/1.78 128/1.78 110
JZ2-21-6-H 3.5 10 8.7 900 1080 110
JZ2-22-6-H 5 13.3 11.5 122
JZ2-31-6-H 7.5 19.2 16.6 119.6 128/2.05 128/2.05 174
JZ2-32-6-H 11 26.8 23.2 195
JZ2-41-6-H 16 35 30.3 232.8 110/9 30/2.45 365
JZ2-41-8-H 11 28.9 25 695 830 340
JZ2-22-4/12-H 3/1.2 6.8/7.12 5.9/6.15 1350/410 1620/490 S2-30/10min 40 110/1.6 30/0.85 112
JZ2-23-4/12-H 4.3/1.7 9.5/10.1 8.2/8.73 149
JZ2-32-4/12-H 6/2.5 12.9/11.3 11.2/9.76 1350/390 1620/465 119.6 110/4.5 30/1.23 177
JZ2-33-4/12-H 8.5/3.5 17.9/14.8 15.5/12.8 1350/390 227
JZ2-33-4/16-H 8.5/2.4 19.2/11.6 16.6/10.1 1370/310 1620/370 S2-30/15min 230
JZ2-41-4/16-H 12/3.5 25/18.2 21.6/15.7 1370/320 1640/380 232.8 110/9 30/2.45 345
JZ2-42-4/16-H 18/5 37/23.8 32/20.6 407
JZ2-41-4/8/16-H 7.5/7.5/5 16.8/17.8/26 14.5/15.4/22.5 1400/665/300 1680/798/360 S2-10/30/5min 365
JZ2-42-4/8/16-H 11/11/7.5 23/25.5/36 19.9/22.1/31.1 415
JZ2-51-4/8/16-H 16/16/11 33/35.2/49 28.5/30.4/42.3 510.6 30/2.46 505
JZ2-52-4/8/16-H 22/22/16 43.7/47.8/71 37.8/41.3/61.3 575
JZ2-61-4/8/16-H 30/30/22 60.5/69.5/96 52.3/60.1/83 1420/670/300 1700/800/360 676 110/10.47 30/2.86 850
JZ2-71-4/8/16-H 45/45/30 88.5/100/142 76.5/86.4/122.7 1420/680/320 1700/810/380 889 110/18.25 30/4.98 1210
JZ2-72-4/8/16-H 60/60/45 114/135/195 98.5/116.6/168.5 1420/720/330 1700/860/390 1350 1560
JZ2-81-4/8/16-H 85/85/64 160/169/337 138.2/168.4/291 1450/720/355 1740/870/430 3000 110/4.1 110/4.1 2800

外形安裝尺寸（Mounting and Overall Dimension）

機座號 Frame Size 型號  Type 外形及安裝尺寸 Mounting and Overall Dimension
A B C D E F G 圓錐形軸伸 Conical Shaft Extension H K AB AD HA HD L1 L2
D1 G1 E1 d1
JZ2-H 1# JZ2-11、12-4-H 190 140 85 28 60 8 24 _ _ _ _ 112 14 220 190 12 275 410 485
JZ2-13-4-H 170 440 515
JZ2-H 2# JZ2-21-4、6-H 220 150 90 32 80 10 27 125 260 230 15 295 410 530
JZ2-22-6、4/12-H 200 460 590
JZ2-23-4/12-H 270 530 660
JZ2-H 3# JZ2-31-6-H 250 200 100 42 110 12 37 150 18 300 235 20 345 560 650
JZ2-32-6、4/12-H 280 640 730
JZ2-33-4/12、4/16-H 380 740 830
JZ2-H 4# JZ2-41-6、8、4/16、4/8/16-H 320 305 120 50 16 43.5 200 26 380 295 470 700 820
JZ2-42-4/16、4/8/16-H 380 770 895
JZ2-H 5# JZ2-51-4/8/16-H 360 360 140 60 140 18 52.9 225 430 325 510 840 990
JZ2-52-4/8/16-H 460 940 1090
JZ2-H 6# JZ2-61-4/8/16-H 420 440 160 70 20 62.5 M48×2 26 105 90 250 32 510 380 23 575 950 1130
JZ2-H 7# JZ2-71-4/8/16-H 480 510 190 90 170 25 81 M60×3 35 130 110 280 560 410 600 1060 1255
JZ2-72-4/8/16-H 660 1200 1535
JZ2-H 8# JZ2-81-4/8/16-H 508 508 216 – – – – 315 30 628 485 20 750 1150 1380

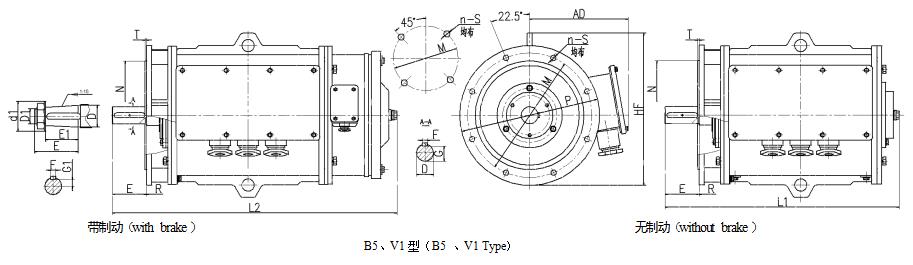

機座號 Frame Size 型號  Type 外形及安裝尺寸 Mounting and Overall Dimension
D E F G 圓錐形軸伸 Conical Shaft Extension M N P R S n T AD HF L1 L2
D1 G1 E1 d1
JZ2-H 1# JZ2-11、12-4-H 28 60 8 24 _ _ _ _ 265 230 300 0±2 15 4 4 190 340 410 485
JZ2-13-4-H 440 515
JZ2-H 2# JZ2-21-4、6-H 32 80 10 27 230 345 410 530
JZ2-22-6、4/12-H 460 590
JZ2-23-4/12-H 530 660
JZ2-H 3# JZ2-31-6-H 42 110 12 37 300 250 350 0±3 19 5 235 410 560 650
JZ2-32-6、4/12-H 640 730
JZ2-33-4/12、4/16-H 740 830
JZ2-H 4# JZ2-41-6、8、4/16、4/8/16-H 50 16 43.5 400 350 450 0±4 8 360 730 700 820
JZ2-42-4/16、4/8/16-H 770 895
JZ2-H 5# JZ2-51-4/8/16-H 60 140 18 52.9 500 450 550 370 780 840 990
JZ2-52-4/8/16-H 940 1090
JZ2-H 6# JZ2-61-4/8/16-H 70 20 62.5 M48×2 26 105 90 430 850 950 1130
JZ2-H 7# JZ2-71-4/8/16-H 90 170 25 81 M60×3 35 130 110 600 550 660 24 6 480 980 1090 1530
JZ2-72-4/8/16-H

注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。

Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
